Due to the fact that in Monaco it is very difficult to install an ham radio antenna for a wide range of reasons, I had to choose a vertical, multibands antenna with a reasonable lenght.
F6EJU who have the same antenna, propose me an hand for the assembly and the setup of the antenna.
Here below some pictures took in Sospel (06380) :

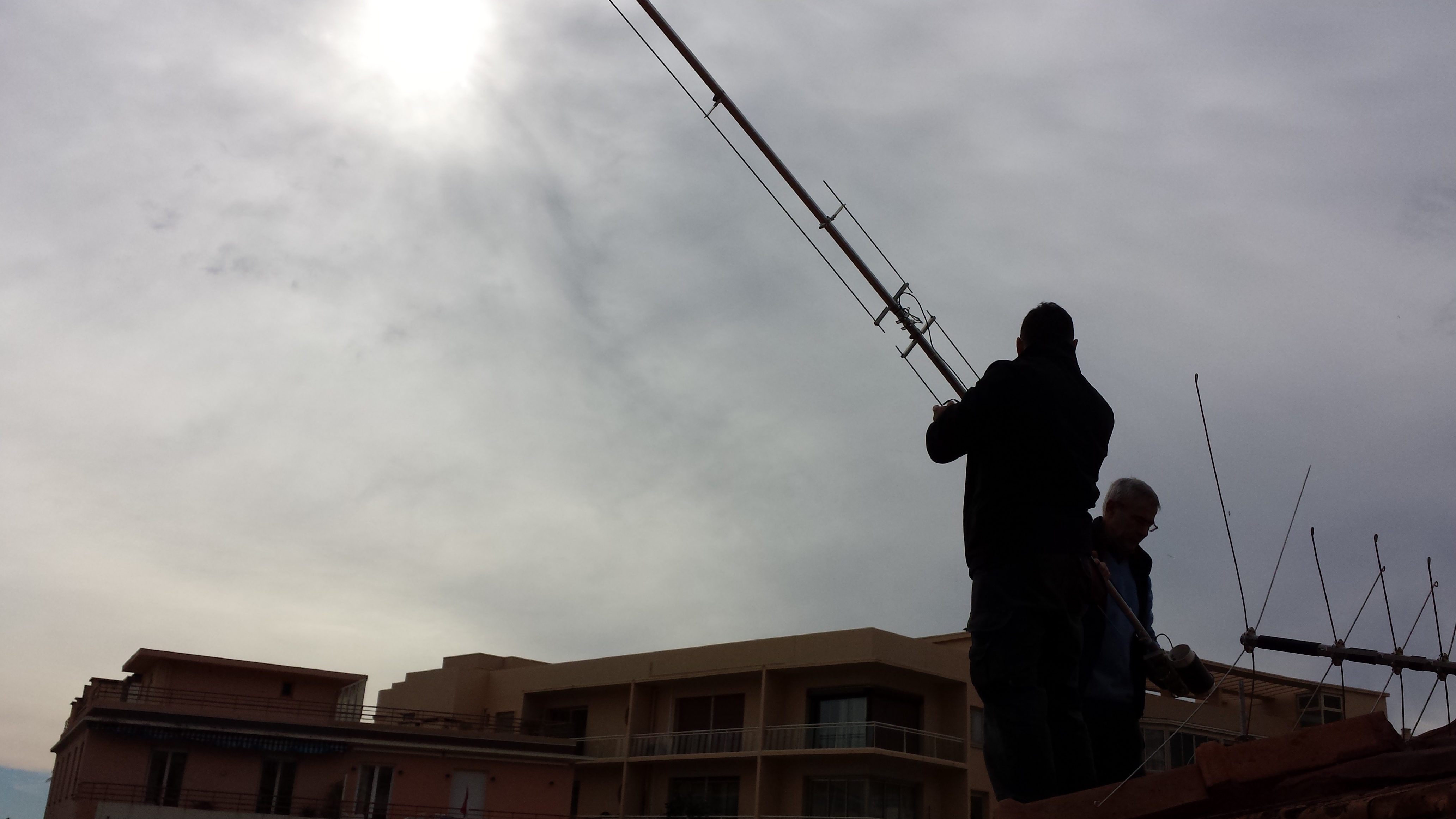

Picture 1: Assembly of the antenna
Picture 2: Balun & capacitance spokes
Picture 3: Tuning of the antenna

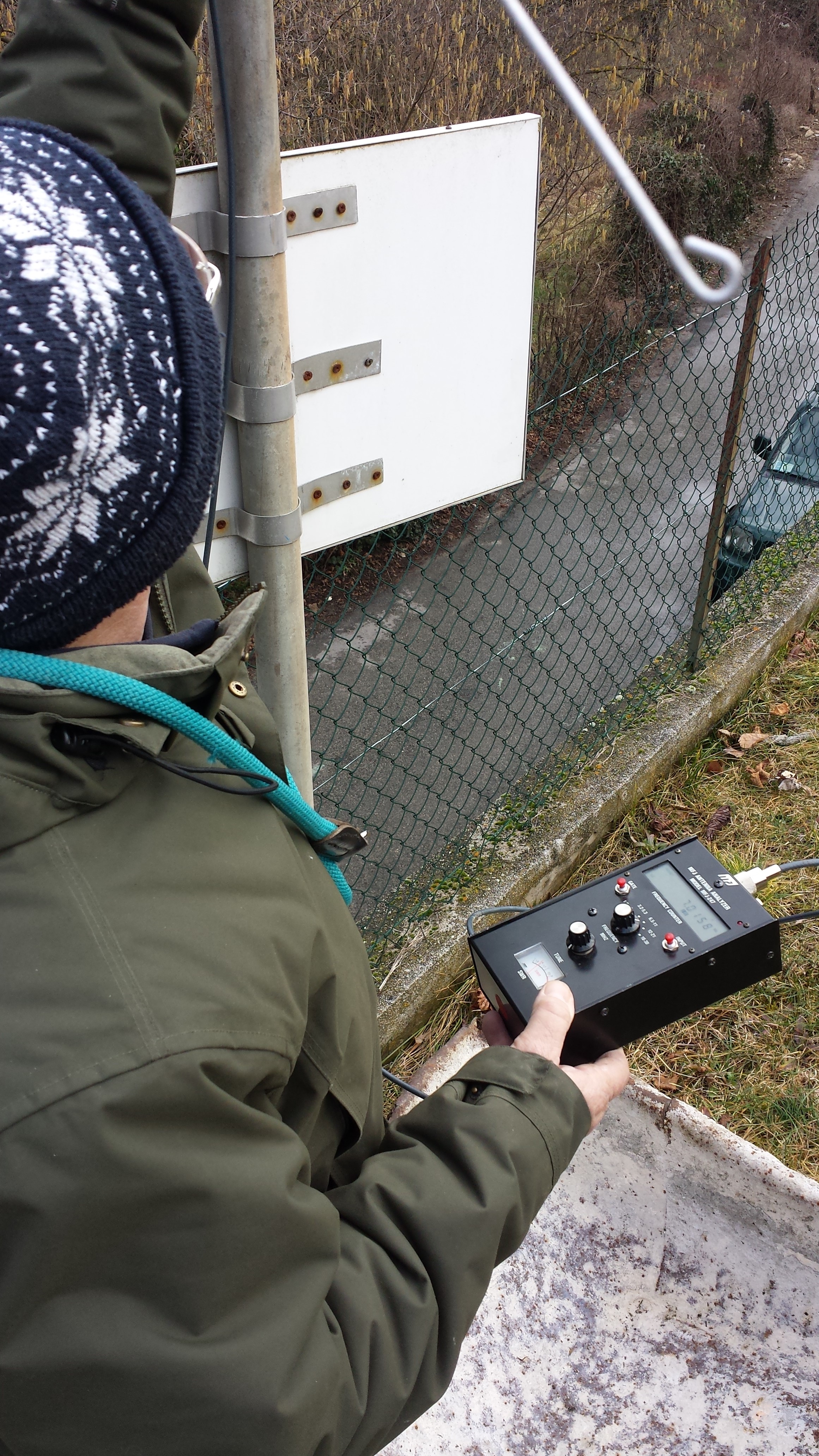

Picture 4: Tuning of the antenna
And here below there are some pictures about the installation of the antenna in Monaco (98000):

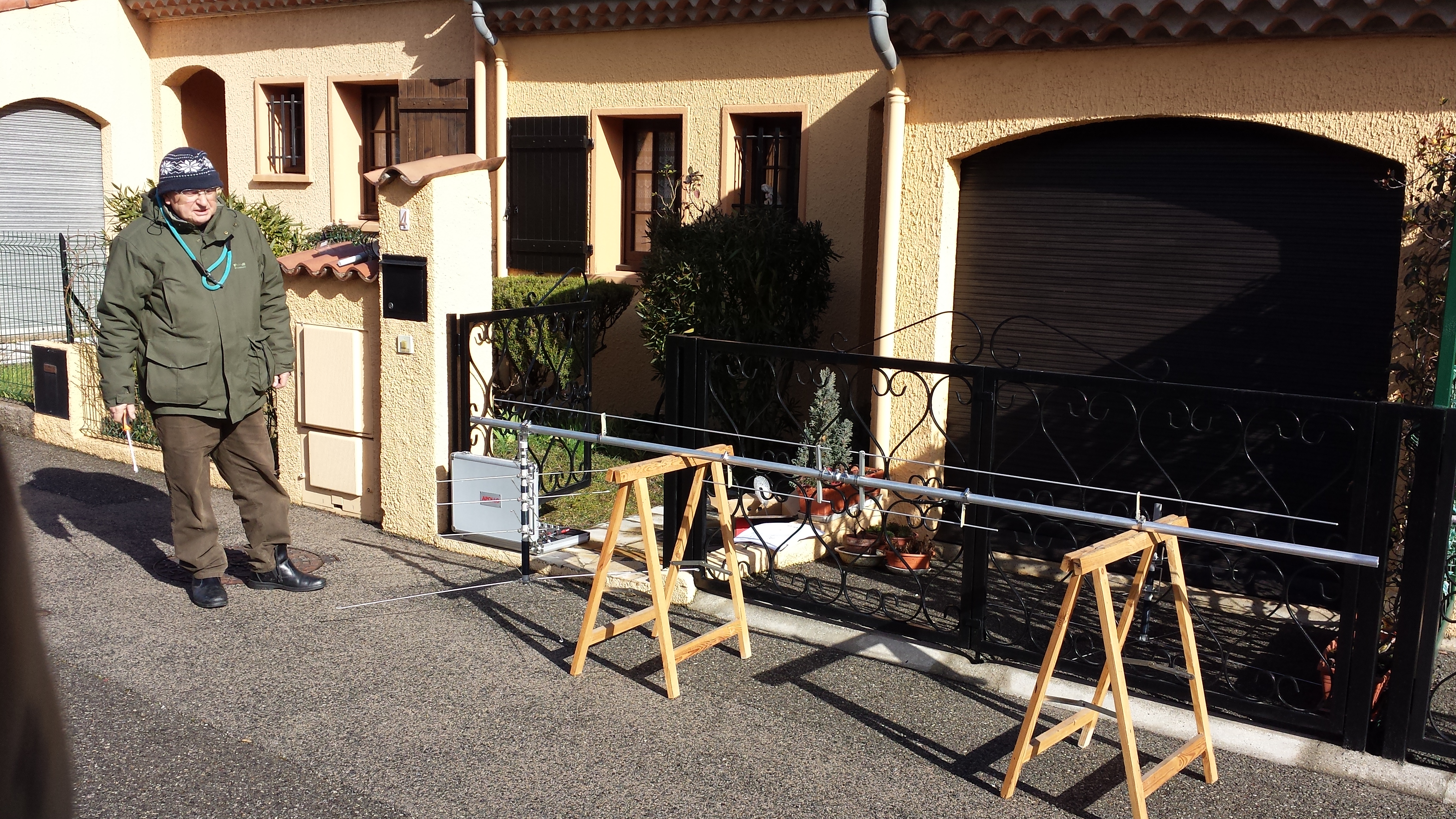

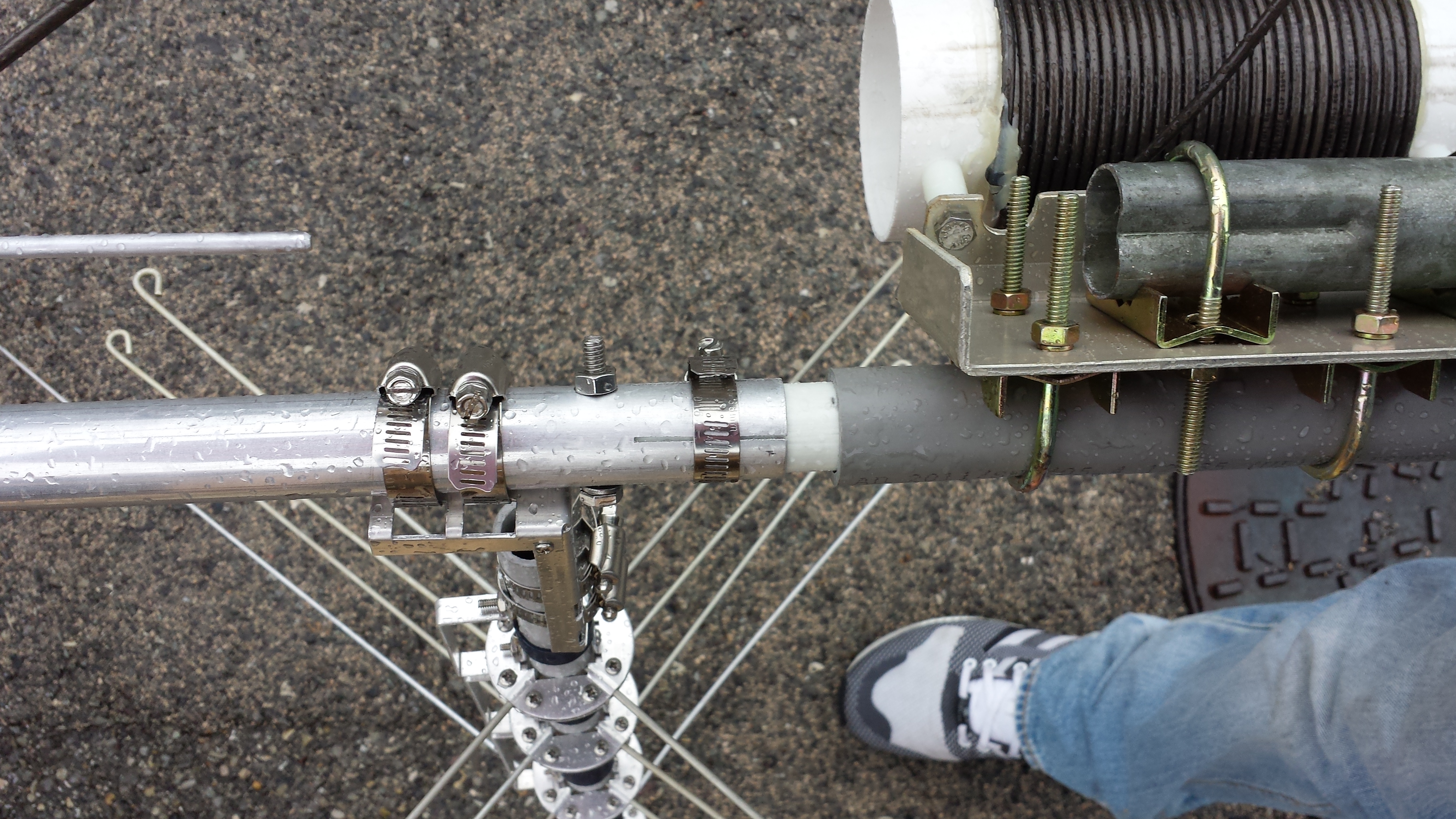

Picture 5: Re-building on the roof

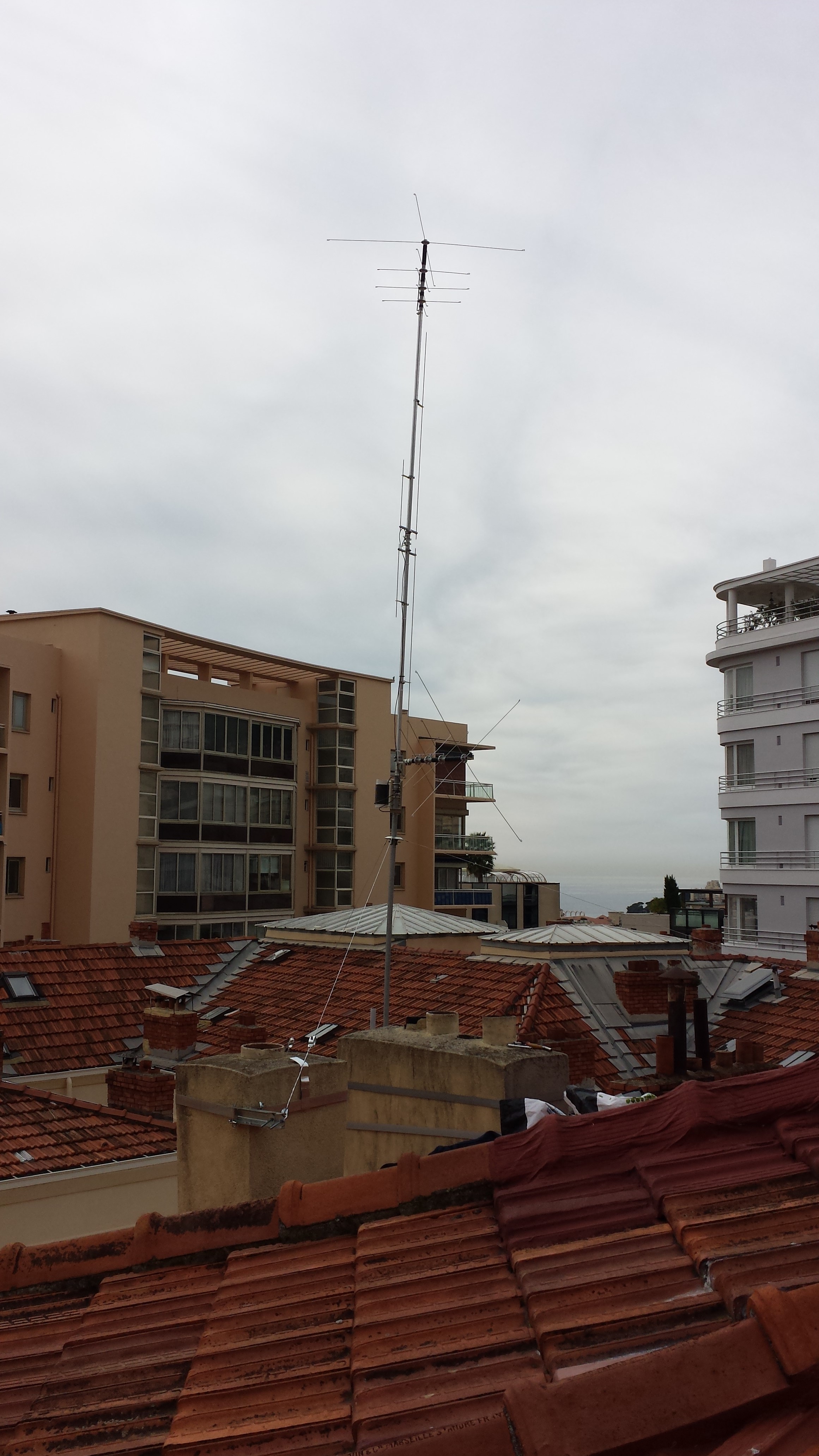

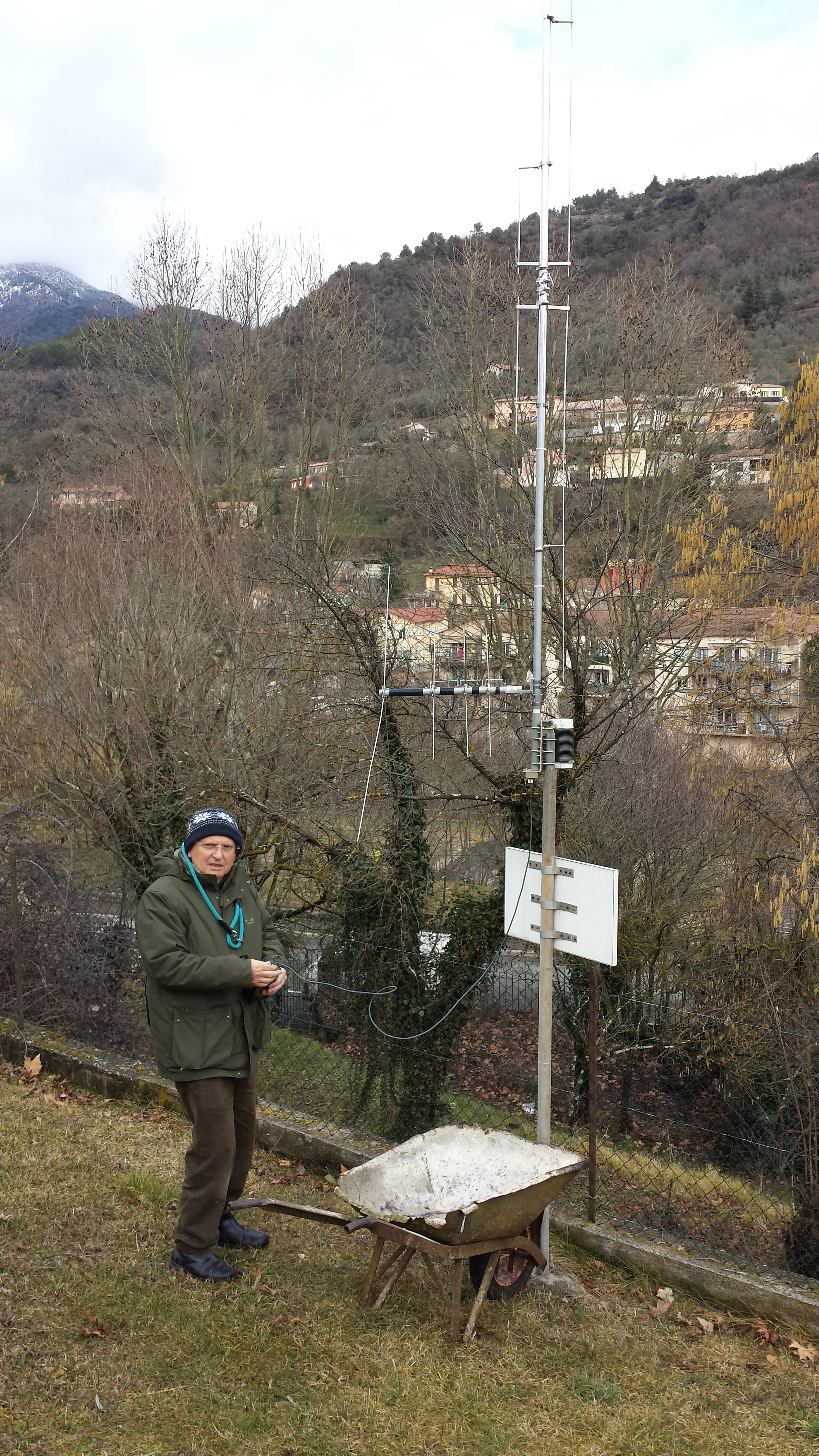

Picture 6: The antenna in place
Here are the measurements done with the RigExpert 230 Zoom antenna tuner once the antenna is in place:

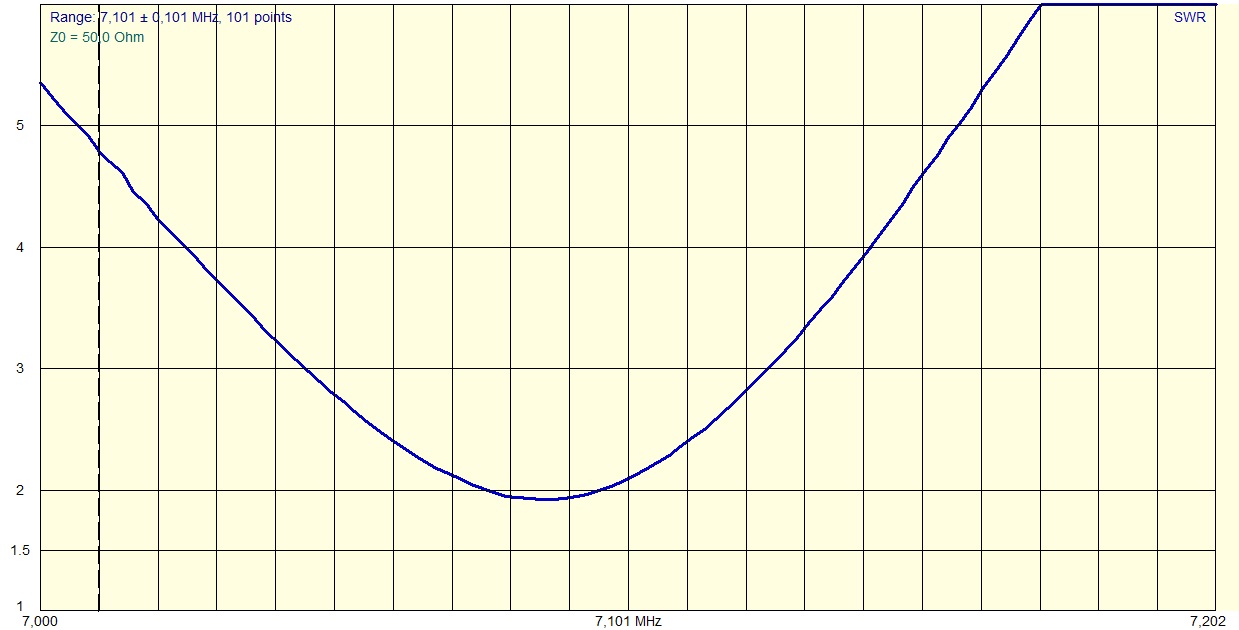

- 40 Meters :

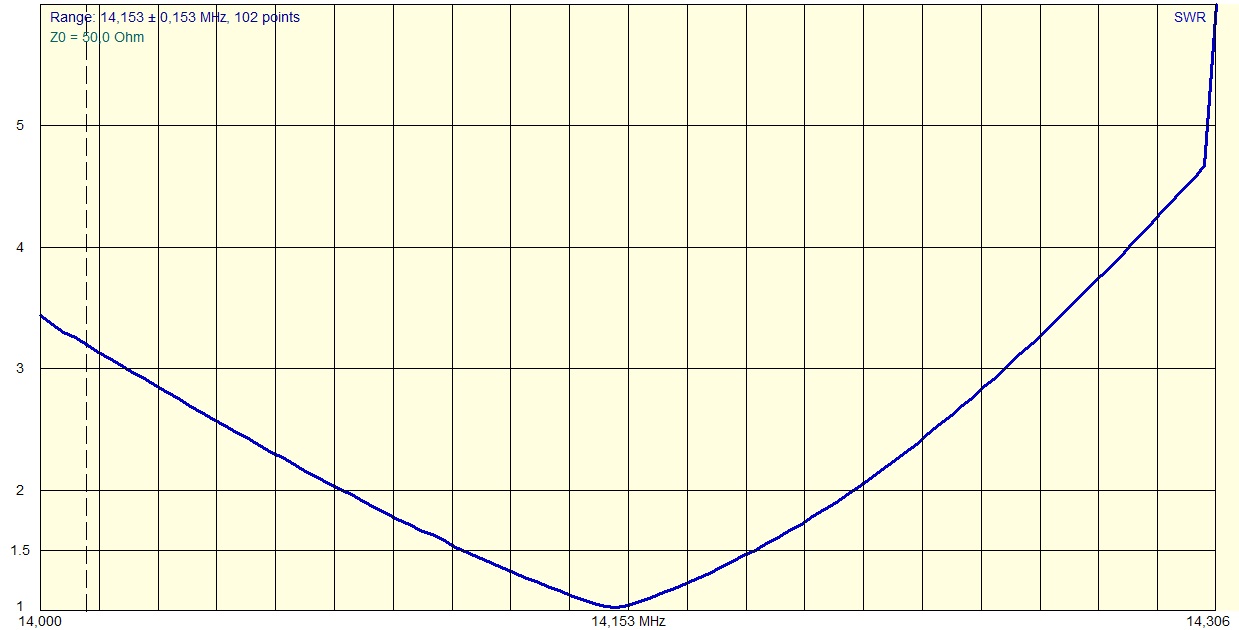

- 20 Meters :

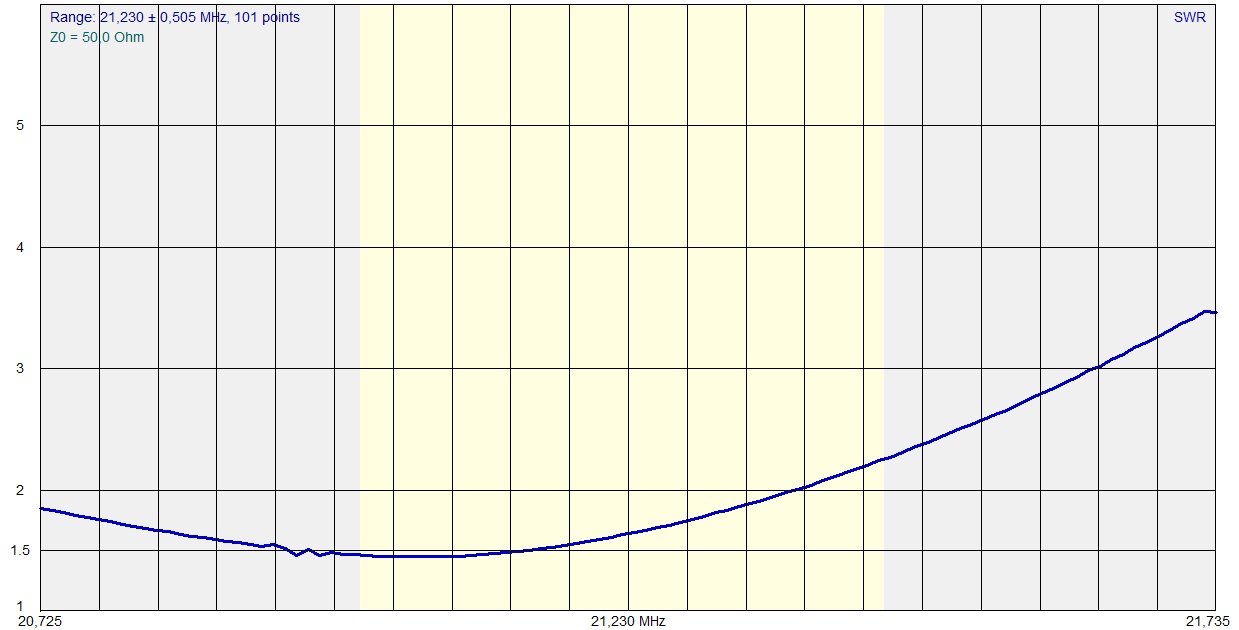

- 15 Meters :

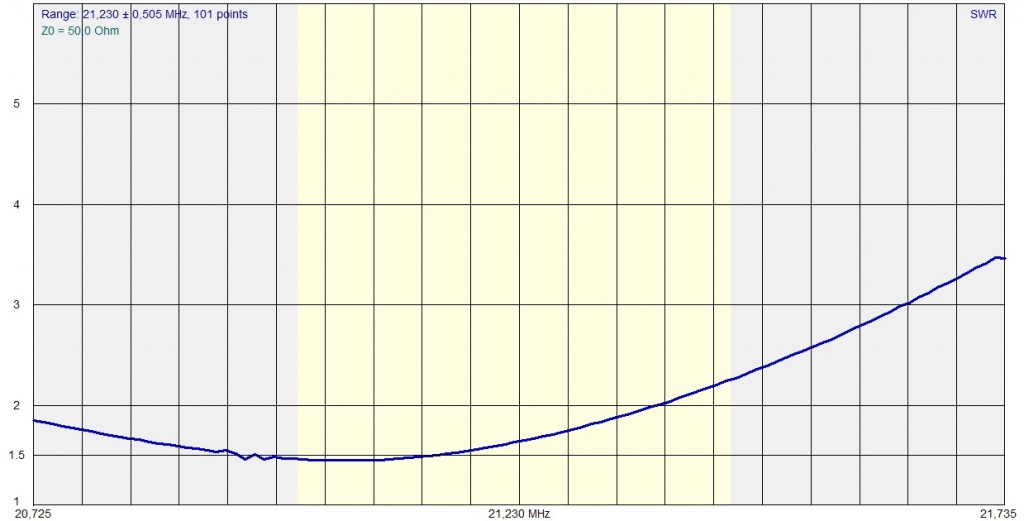

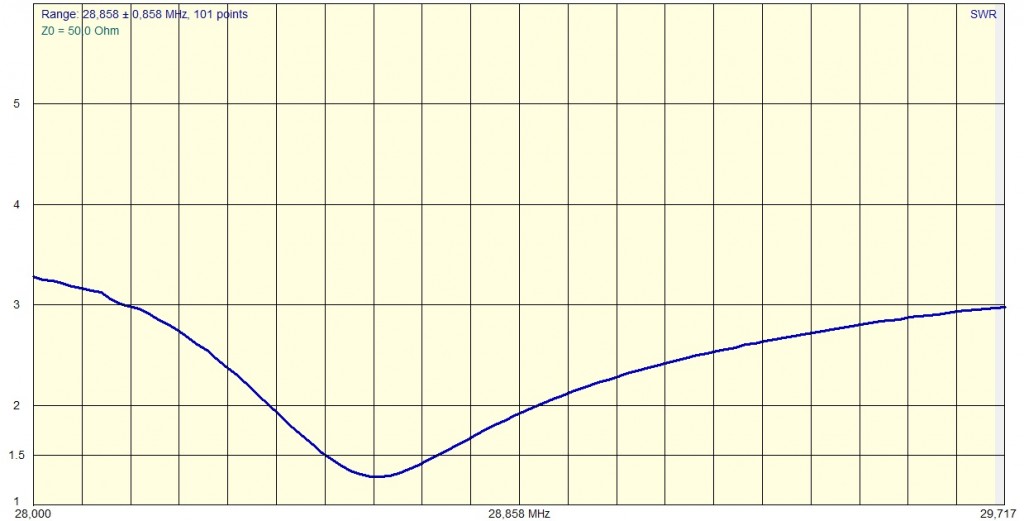

- 10 Meters :

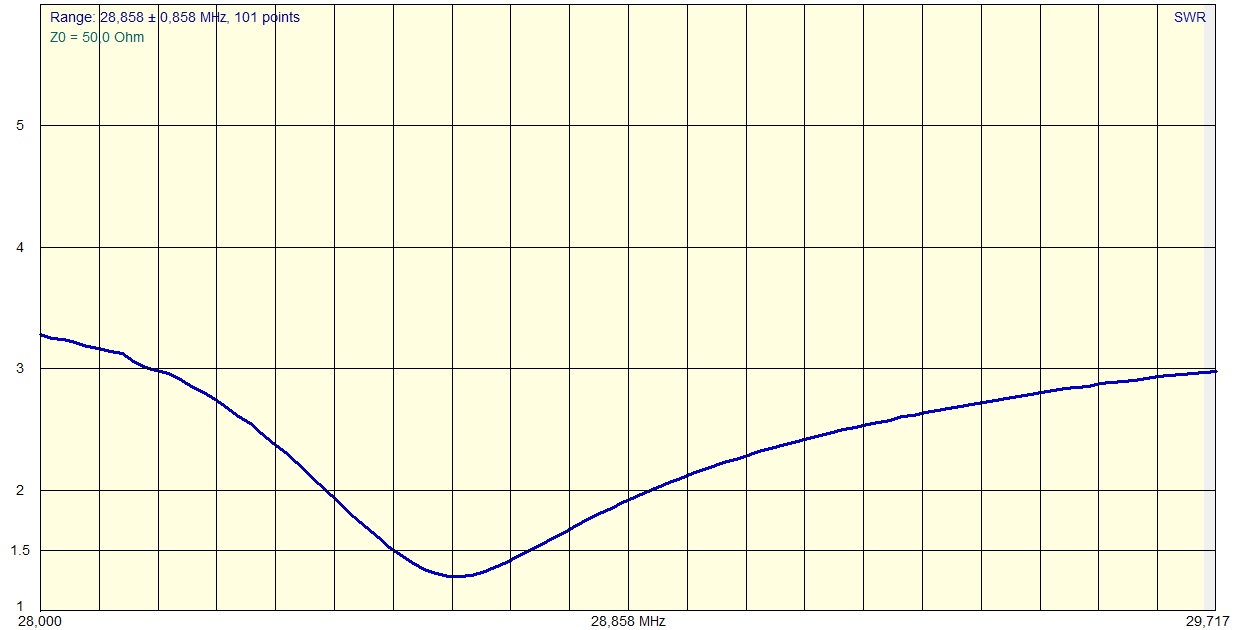

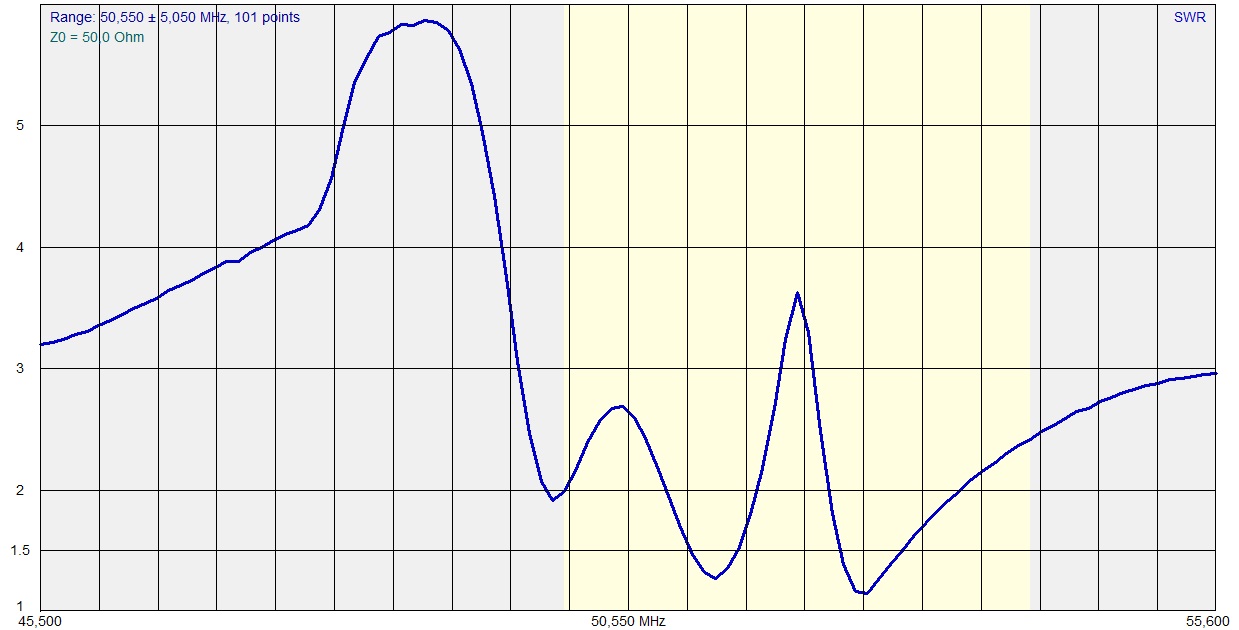

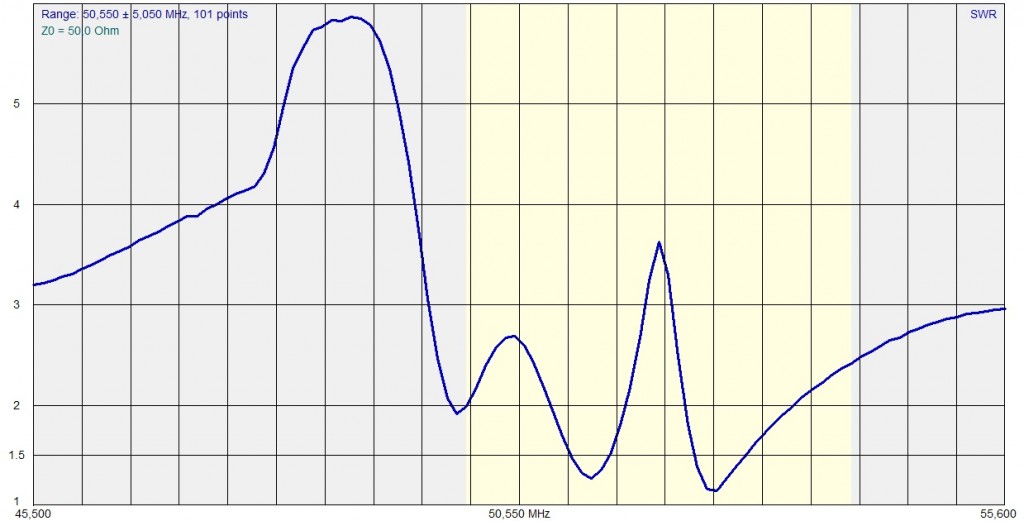

- 6 Meters :

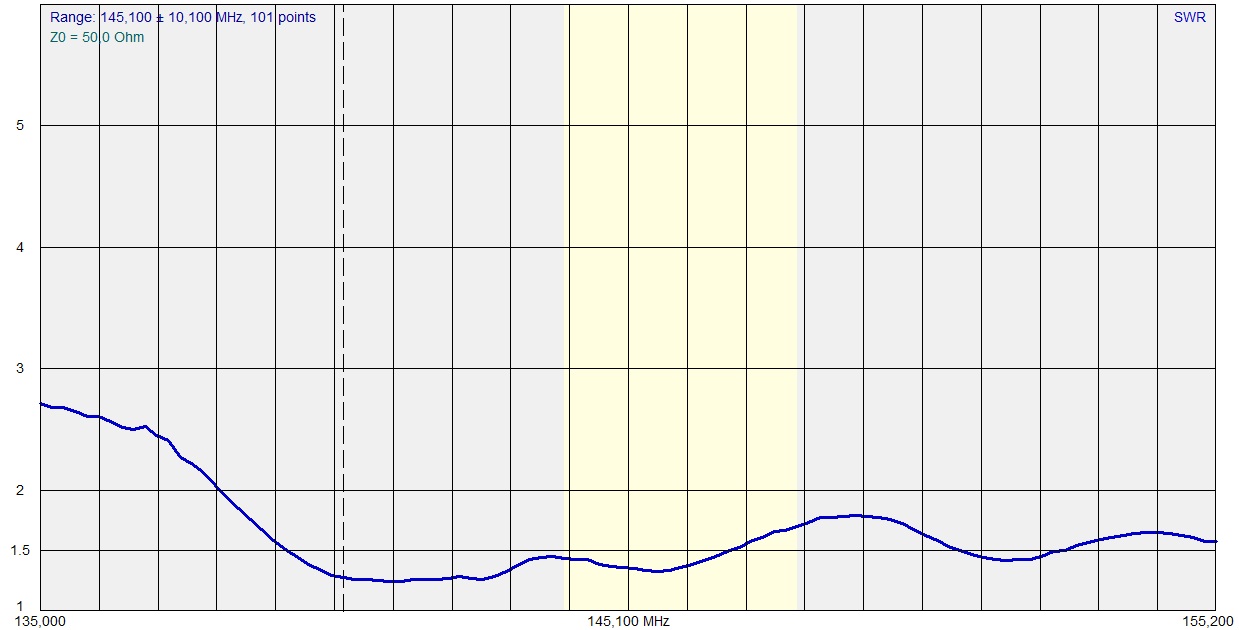

- 2 Meters :
73! beau site!
jean claude f6eju
